Custom LiFePO4 BMS Board 3S-24S 10A-200A for Power Tools
Contattimi gratis campioni e buoni.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Base Material | FR-4 | Copper Thickness | 0.5-4oz/1oz /2oz or custom |
|---|---|---|---|
| Board Thickness | 0.2-6mm | Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom | Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Surface Finishing | HASL Lead Free | Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom | Applicable Battery | LiFePO4,Li-ion 18650 Bluetooth |
| Balance Function | yes | Temp Sensor | yes |
| BT Function | yes | Size | 44.5*31mm |
| Customize Current | 10A-200A | ||
| Evidenziare | Custom LiFePO4 BMS board,3S-24S BMS for power tools,200A BMS with warranty |
||
Descrizione di prodotto

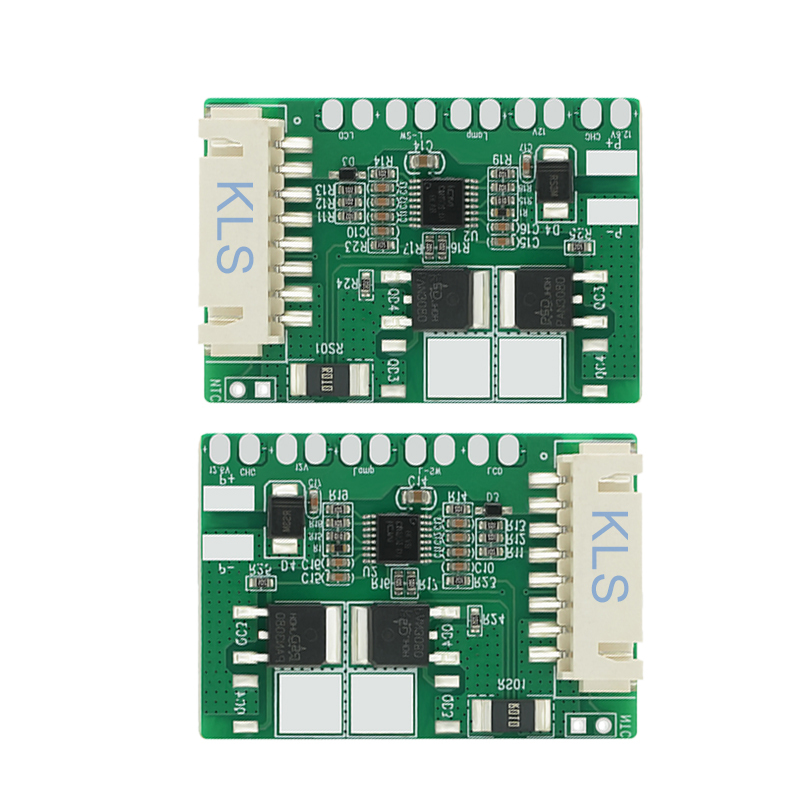

Custom LiFePO4 BMS Board - 3S to 24S Configuration
Product Specifications
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 0.5-4oz/1oz /2oz or custom |
| Board Thickness | 0.2-6mm |
| Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom |
| Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Surface Finishing | HASL Lead Free |
| Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom |
| Applicable Battery | LiFePO4, Li-ion 18650 Bluetooth |
| Certifications | CE, FCC, ISO, ROHS, EPR |
Key Features

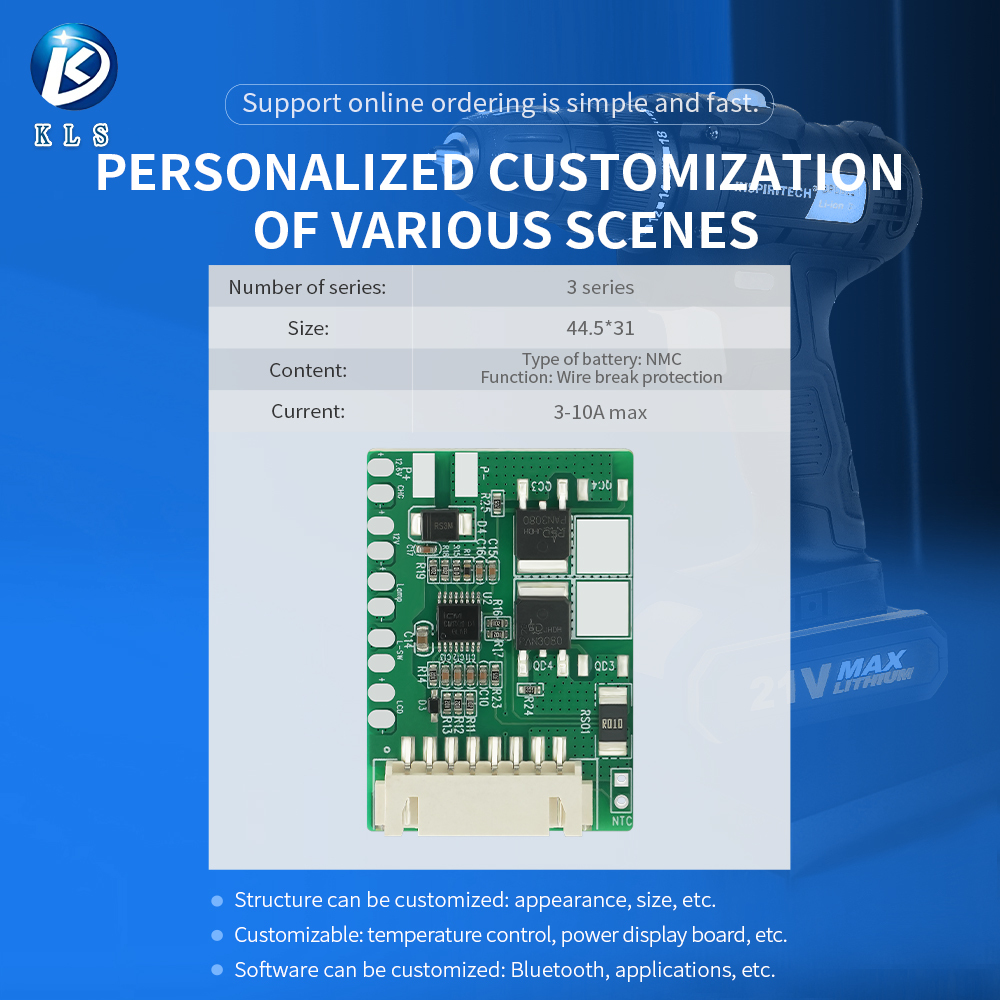

- Customizable from 3S to 24S lithium battery configurations
- Current range: 10A-200A

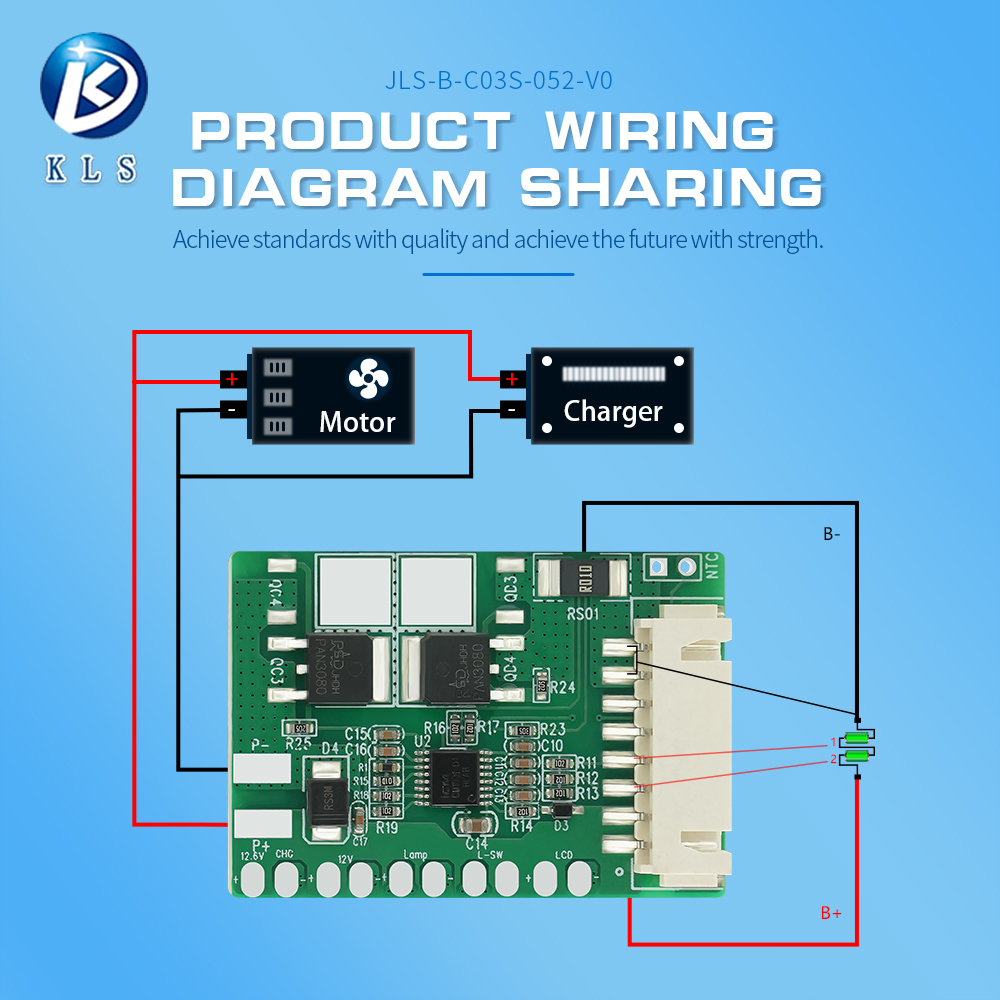

- Common port for charge/discharge

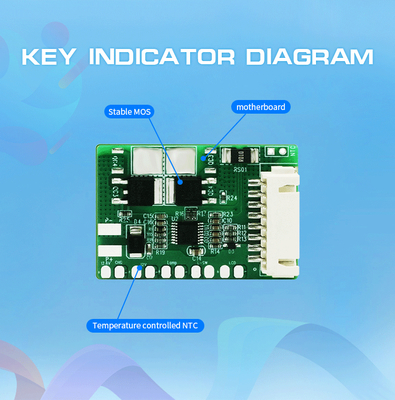

- Built-in balance function
- Temperature sensor included
- Bluetooth functionality available
- Compact size: 44.5*31mm (standard)
- Minimum order quantity: 1 piece
Product Images
Frequently Asked Questions
Q1: What certifications do your BMS/protection boards hold for global compliance?
A: Our products comply with CE, RoHS, and UL standards. Custom certifications are available for OEM/ODM projects. Full documentation ensures seamless market entry.
Q2: Can you customize BMS parameters for LiFePO4, NMC, or other battery types?
A: Yes. Provide voltage range (e.g., 12V-72V), cell configuration, discharge current (up to 300A), and communication needs (CAN/RS485/Bluetooth...) for tailored solutions.
Q3: How does your BMS prevent critical failures like overcharge or short circuits?
A: Multi-layer protection includes ±25mV voltage balancing accuracy, ultra-low impedance MOSFETs for precise current control, real-time temperature monitoring via NTC sensors, and SOC/SOH tracking with industrial-grade ICs.
Q4: What is your minimum order quantity and lead time?
A: Standard MOQ: 1 unit (3-7 days). Bulk orders (10,000+ units) qualify for 10-day expedited production and volume discounts.
Q5: Do you offer waterproof BMS for EVs or marine applications?
A: Yes. Feature wide-temperature operation (-40°C to +85°C), vibration resistance, and automotive-grade connectors. Custom sealing options available.
